Description
guitar pedal footswitch wiring Wiring Board For 3PDT With LED – Guitar Pedal PartsWiring PCB board for our 3PDT foot switches with integrated LED. Works with our 3PDT with LED or standard 3PDT foot switches (omit the resistor and do not connect power if using a regular switch or use the resistor and connect a regular LED to + pins). Mounts directly to foot switch and includes a spot for LED resistor. After soldering the switch and resistor, simply connect power, ground, input, output, and effect input and output. LED is on when

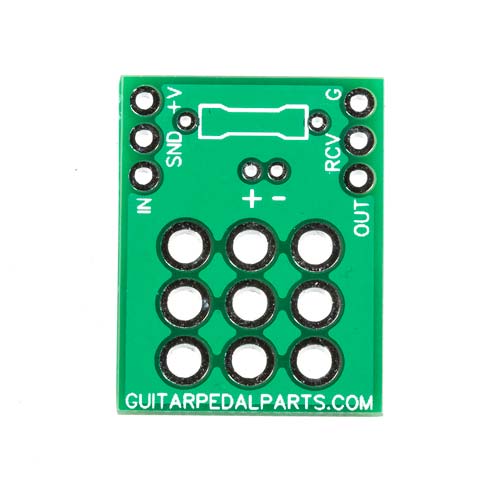

Wiring PCB board for our 3PDT foot switches with integrated LED.
- Works with our 3PDT with LED or standard 3PDT foot switches (omit the resistor and do not connect power if using a regular switch - or use the resistor and connect a regular LED to +/- pins).
- Mounts directly to foot switch and includes a spot for LED resistor.
- After soldering the switch and resistor, simply connect power, ground, input, output, and effect input and output.
- LED is on when effect is active and off when bypassed.
- Effect input is automatically grounded when in bypass to help reduce switch popping.
+V: Power
G: Ground
IN: Input jack tip
SND: PCB Input
RCV: PCB Output
OUT: Output jack tip
+/-: LED positive/negative
