Description

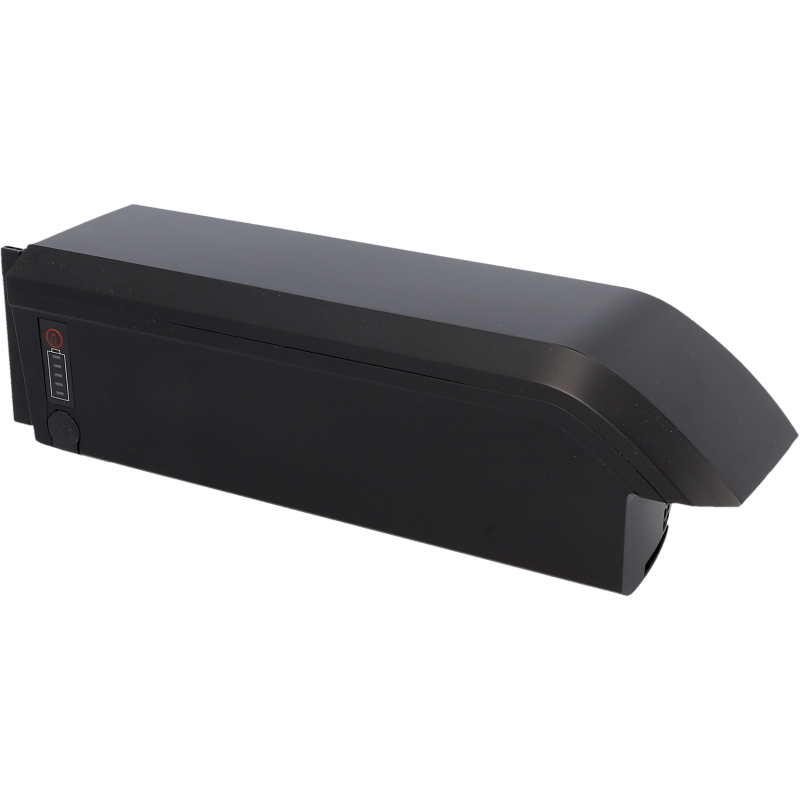

fischer e bike akku ladegerät 48v Fischer E-Bike Battery - Joycube SF-06SHauchen Sie Ihrem E Bike neues Leben ein mit diesem hochwertigen Phylion Joycube SF 06S kompatiblen Akku. Als direkter und zuverlssiger Ersatz fr Ihr verschlissenes Original konzipiert, gewhrleistet dieser 48V 14Ah (655. 2Wh) Akku, dass Sie wieder optimale Reichweite und Untersttzungsleistung beim Radfahren genieen knnen. Dieser Akku ist speziell fr E Bikes ab dem Baujahr 2022 konzipiert, die das CANBUS (Smart BMS) Kommunikationssystem bentigen.
Hauchen Sie Ihrem E-Bike neues Leben ein mit diesem hochwertigen Phylion Joycube SF-06S kompatiblen Akku. Als direkter und zuverlässiger Ersatz für Ihr verschlissenes Original konzipiert, gewährleistet dieser 48V 14Ah (655.2Wh) Akku, dass Sie wieder optimale Reichweite und Unterstützungsleistung beim Radfahren genießen können.
Dieser Akku ist speziell für E-Bikes ab dem Baujahr 2022 konzipiert, die das CANBUS (Smart BMS) Kommunikationssystem benötigen.
⚠️ WICHTIGER HINWEIS: Verwechslungsgefahr SF-06S vs. SF-06
ATTENTION: This item is easily confused with the standard SF-06 model! You must carefully check the position of the charge level indicator:
-
SF-06S (This Product): The charge level indicator is located ON THE SIDE, and the total length of the battery housing is 31.5 cm.
-
SF-06: The charge level indicator is located on top, and the total length is 29.5 cm.
Click here for the SF-06 product.
Please measure your existing battery to ensure a perfect match.
Extensive Compatibility List (Fischer E-Bike Models)
This 48V Phylion Joycube SF-06S CANBUS battery is a guaranteed fit for a wide range of Fischer E-Bike models built from model year 2022 onwards that utilize the 48V CANBUS communication system.
Compatible Fischer Models include (but are not limited to):
-
Viator Series: Viator 1.0, Viator 2.0, Viator 3.0, Viator ETD 1861+, Viator ETH 1861+, Viator ETD 1861.2, Viator ETH 1861.2, Viator ETD 2206, Viator ETH 2206, Viator ETD 2222, Viator ETH 2222.
-
Montis Series: Montis 2.1, Montis 2.1 Junior, Montis EM 1724, Montis EM 1724.1, Montis EM 1726, Montis EM 1862.2, Montis 2206.
-
Terra Series: Terra 2.1, Terra 2.1 Junior, Terra 2206.
-
Other Model Codes and Variants: EM 1922, EM 2127, EM 2129.
Compatible with the following Fischer Model Codes (Check Housing Sticker):
-
ETD 1722, ETH 1722, EM 1723, EM 1725, EM 1726, ETD 1727, ETH 1727
-
ETD 1761, ETH 1761, EM 1762
-
ETD 1806, ETH 1806, ETD 1820, ETH 1820, ETD 1822, ETH 1822, ETD 1828, ETH 1828, EM 1829
-
EM 1862, EM 1864, EM 1865
Technical Data & Safety
This battery is produced with high-quality cells and features a sophisticated CANBUS Smart BMS for seamless communication with your e-bike system.
Nominal Voltage: 46.8 V
Capacity: 14Ah / 655.2Wh
Max. Charge Voltage: 54.6V
Max. Charge Current: 4A
Max. Continuous Discharge Current: 15A
BMS Protocol: CAN bus (Smart BMS)
Battery Position: Down Tube
Safety Features: Includes protection against over charge, over discharge, over current, and temperature issues.
