Description

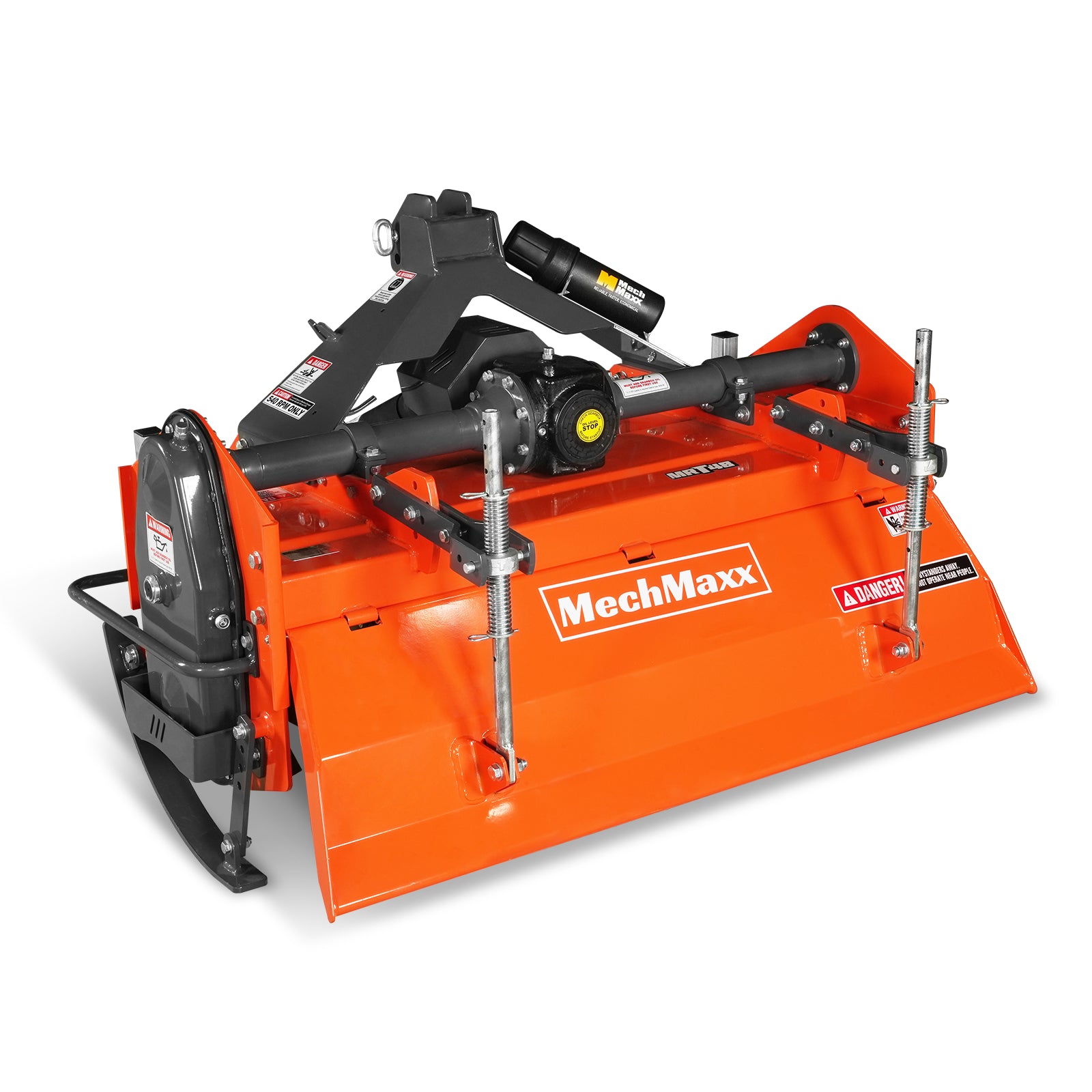

hp gear 48 in Rotary Tiller, 3 Point Hitch Cat.1 & 2, Gear Drive, PTO Shaft Included with Slip Clutch, 25-50 HP, MRT48Working Width 48 in Number of Flanges 6 Overall Dimensions (LWH) 58 x 40. 7 x 37. 6 in Number of Blades 30 Max Working Depth 7 in Blade Arrangement 4 Center Flanges 6 Blades 2 End Flanges 3 Blades Offset Capability N A Blade Type Heat Treated 60Si2Mn Steel C Shaped Skid Shoes Adjustable Depth Control PTO Shaft Included Yes Rotor Bearing NSK Bearing PTO Shaft Series 5 PTO Shaft with Slip Clutch, 1 3 8" 6 Spline (Both Ends), Length: 35 40 in Rotor
| Working Width | 48 in | Number of Flanges | 6 |
| Overall Dimensions (L×W×H) | 58 x 40.7 x 37.6 in | Number of Blades | 30 |
| Max Working Depth | 7 in | Blade Arrangement | 4 Center Flanges × 6 Blades 2 End Flanges × 3 Blades |
| Offset Capability | N/A | Blade Type | Heat-Treated 60Si2Mn Steel “C”-Shaped |
| Skid Shoes | Adjustable Depth Control | PTO Shaft Included | Yes |
| Rotor Bearing | NSK Bearing | PTO Shaft | Series 5 PTO Shaft with Slip Clutch, 1-3/8" × 6-Spline (Both Ends), Length: 35-40 in |
| Rotor Rotation | Forward | Tractor PTO Speed | 540 RPM |
| Rotor Speed @ 540 PTO RPM | 205 RPM | Recommended PTO HP | 25-50 HP |
| Rotor Diameter | 3 in | 3 Point Hitch | Cat.1 & 2 |
| Rotor Swing Diameter | 18.7 in | Quick Hitch Compatibility | Cat.1 & 2 Quick Hitch Compatible |
| Side Drive Type | Gear Driven | Rear Deflector | Double Spring |
| Side Box Lubrication | SAE 80W-90, Approx. 2 L (2.11 qt) NOTE: SHIPPED WITHOUT OIL. |
Parking Stand Included | Yes |
| Main Gearbox | Cast Iron Oil-Bath Gearbox, Gear Ratio 1.69:1 | Packing Size (L×W×H) | 63.78 x 34.25 x 32.28 in |
| Gearbox Lubrication | SAE 80W-90, Approx. 1 L (1.06 qt) NOTE: SHIPPED WITHOUT OIL. |
Weight (N.W/G.W.) | 749.56/896.54 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
